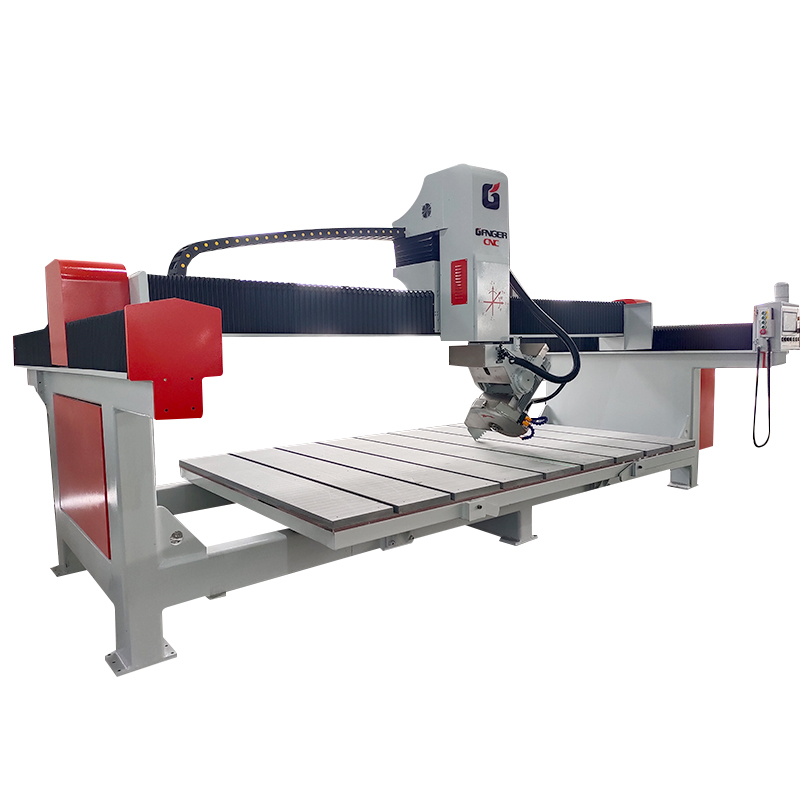

4 Axis Bridge Cutting Machine GQ-3220B
WhatsApp: +86 18865917946
Phone: +86 18865917946
Email: sh@gangercnc.com
Send Inquiry

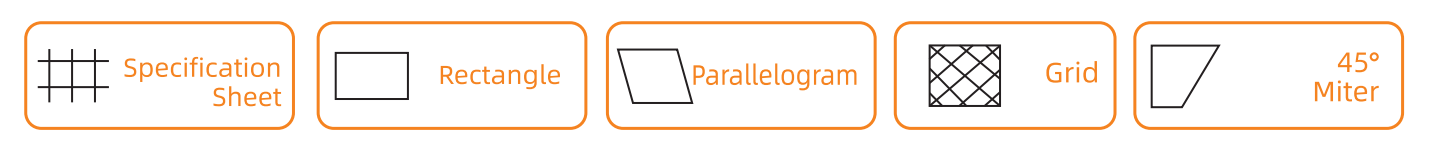

Function Display


54d9cff650761244ba44c8e50111f2bb


Machine Features

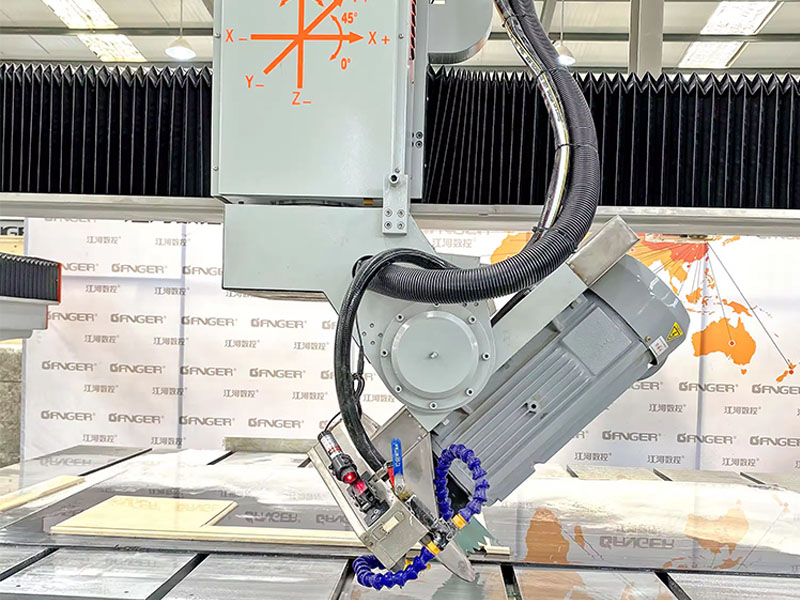

1.XYZC four axis, C axis 0 to 135 degree automatic rotation,horizontal, vertical and diamond cutting, and miter 45° cutting.

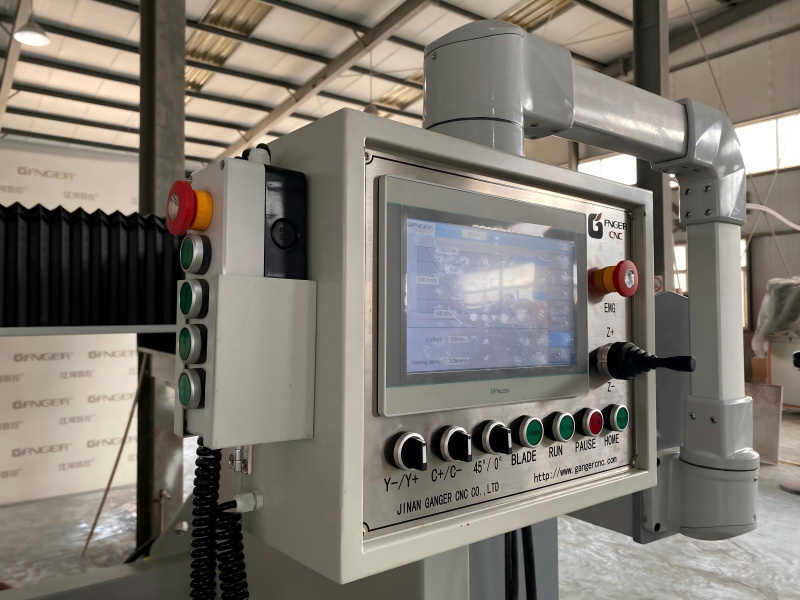

2.PLC control system, input operating parameters on the control panel, and the cutting process is automated and programmed.

3.By infrared ray to confirm the position of the workpiece.

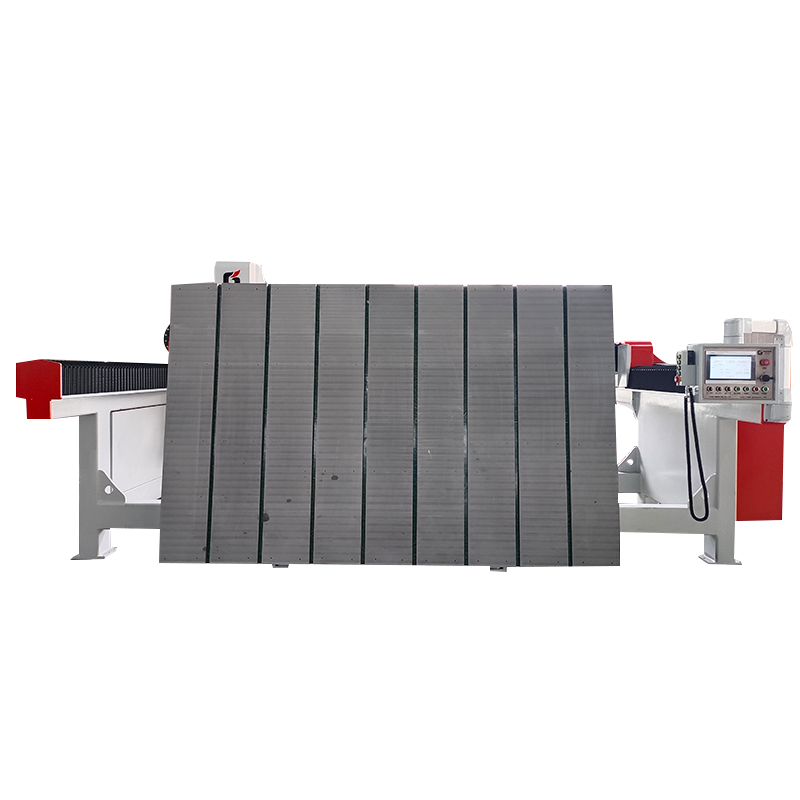

4.Table tilts 85 degree to load slabs easily.

5.Whole steel structure machine body ensuring high stability.

6.Running stability, high precision, high speed.

7.Compact and rational design, small size machine, convenient to handle and move.


Applicable Industries And Materials


Applicable industry: sintered stone application industry, fabricated building materials industry, home decoration materials industry, cutting marble, artificial stone, quartz stone and other materials.

Applicable material: sintered stone, ceramic plate, quartz stone, marble, etc.


Technical Parameters


ModelGQ-3220B
X/Y/Z Axis Working Size3200*2000*200mm
Diameter of blade350mm
Working Table Size3200x2000mm
Rotation Speed of blade3000~6000rpm
Blade Motor Power11KW
Total Power25KW
Miter45°
C-axis Rotation Angle0°-135°
Table Tilting Angle85°
Control SystemGANGER
Gross Weight4500KGS
Air conditioner
Optional
Grid foot grilleOptional


FREE

Free process

analysis

365

One year free

warranty

24/7

24/7 online

service

Free software

training

lmmediate

installation guide

Free online troubleshooting

Professional

workshop planning

One year free

warranty

Future equipment

upgrades

1.QUALITY CONTROL

  • Professional technical engineers inspect the processing to ensure the quality of products
  • Each machine will run around 24 hours and tested 8 hours before delivery to ensure accurately in your workshop



2.GUARANTEE & AFTER SALE SERVICES

  • Free training available here China or online teaching video
  • 12 months guarantee under correct use and life time free consultation
  • Spare parts shall be free of charge if any problem during the warranty period
  • Consumable parts will be offered at agency price when replacement needed



3.OEM SERVICE AVAILABLE

  • XYZ working size customized according to your requirement
  • Main spare parts: motor.system,inverter choose as your choice
  • Machine brand and painting customized (agent available or MOQ 10 sets)



4.DELIVERY

  • Standard model: 10-20 working days
  • Customized Models: A reasonable delivery schedule will be offered after comprehensively evaluating all factors.



5.PAYMENT TERMS

  • T/T in advance
  • West union: Available when amount less than 1000$, banking charges paid by buyer
  • LC draft should be sent to confirm before Original LC made.
SUBMIT
