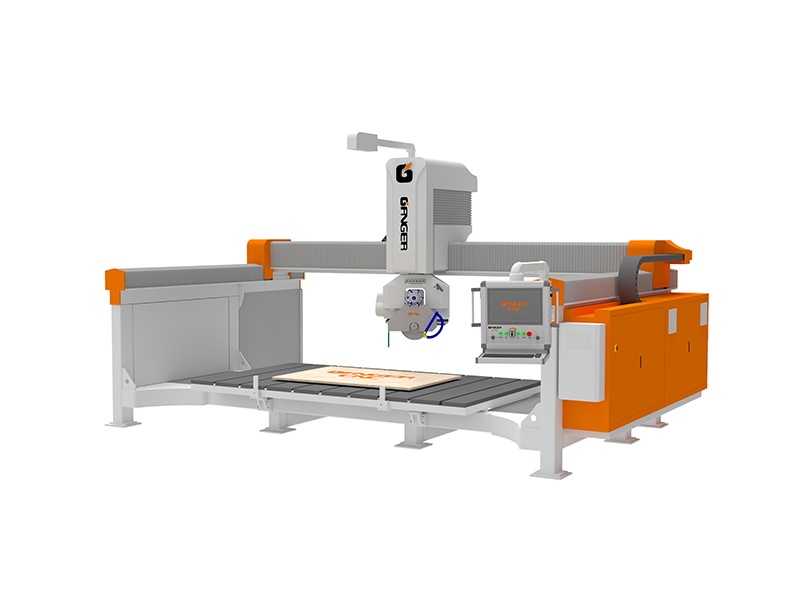

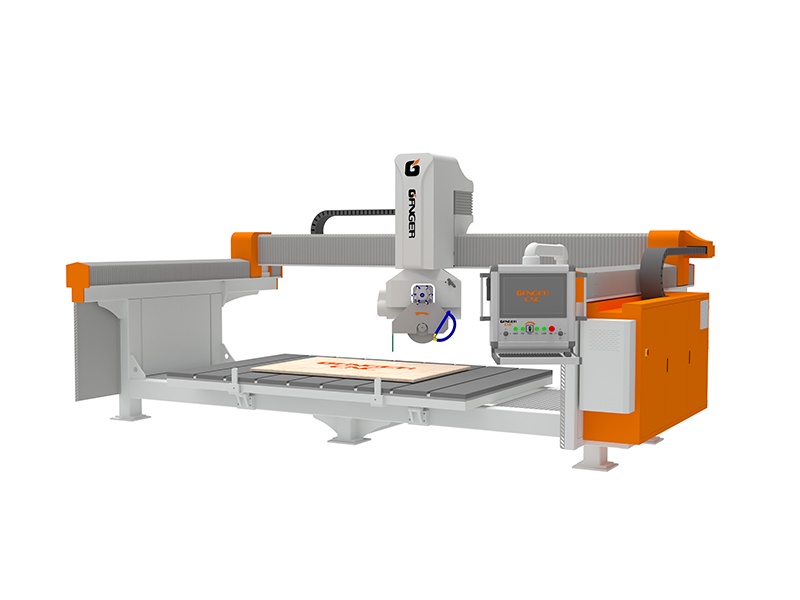

5 Axis Bridge Cutting Machine GQ-3220CM
WhatsApp: +86 18865917946
Phone: +86 18865917946
Email: sh@gangercnc.com
Send Inquiry
Function Display


d608ecd671341da53ee3d192650a1b40


Machine Features


1. XYZAC five axis, A axis 0 to 90 degrees automatic rotation, C axis 0 to 360 degrees automatic rotation.

2. With a separate spindle 5.5KW, 18000rpm.

3. Vertical and horizontal cutting, multi-angle diagonal cutting.

4. Cutting straight line, curve lines, circle, oval, arc, grid point.

5. Slotting,edging, beveling, chamfering and cutting.

6. Cut sink holes, drill faucet holes.

7. Control system can read NC code and CAD program.

8. Table tilts 85 degree to load slabs easily.


Applicable Industries And Materials


Applicable industry: sintered stone application industry, fabricated building materials industry, home decoration materials industry, cutting marble, artificial stone, quartz stone and other materials.

Applicable material: sintered stone, ceramic plate, quartz stone, marble, etc.


Technical Parameters


Model

GQ-3220CM

X/Y/Z Axis working size

3200*2000*500mm

Diameter of blade

350mm

Working table size

3200x2000mm

Blade motor power

15KW

Total power

29KW

Spindle power

5.5 KW

Max spindle speed

18000rpm

Rotation speed of blade

3000~6000rpm

A axis rotation angle

0°-90°

C axis rotation angle

0°-360°

Table Tilting angle

85°

Control system

GANGER

Gross weight

4500KGS


FREE

Free process

analysis

365

One year free

warranty

24/7

24/7 online

service

Free software

training

lmmediate

installation guide

Free online troubleshooting

Professional

workshop planning

One year free

warranty

Future equipment

upgrades

1.QUALITY CONTROL

  • Professional technical engineers inspect the processing to ensure the quality of products
  • Each machine will run around 24 hours and tested 8 hours before delivery to ensure accurately in your workshop



2.GUARANTEE & AFTER SALE SERVICES

  • Free training available here China or online teaching video
  • 12 months guarantee under correct use and life time free consultation
  • Spare parts shall be free of charge if any problem during the warranty period
  • Consumable parts will be offered at agency price when replacement needed



3.OEM SERVICE AVAILABLE

  • XYZ working size customized according to your requirement
  • Main spare parts: motor.system,inverter choose as your choice
  • Machine brand and painting customized (agent available or MOQ 10 sets)



4.DELIVERY

  • Standard model: 10-20 working days
  • Customized Models: A reasonable delivery schedule will be offered after comprehensively evaluating all factors.



5.PAYMENT TERMS

  • T/T in advance
  • West union: Available when amount less than 1000$, banking charges paid by buyer
  • LC draft should be sent to confirm before Original LC made.
