  • 5 Axis Bridge Cutting Machine GQ-3220DSW (Sawjet: saw blade + waterjet)

›

5 Axis Bridge Cutting Machine GQ-3220DSW (Sawjet: saw blade + waterjet)
WhatsApp: +86 18865917946
Phone: +86 18865917946
Email: sh@gangercnc.com
Send Inquiry

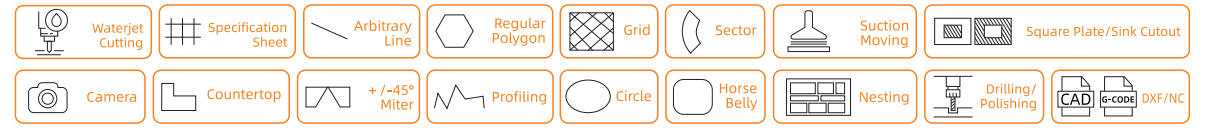

Function Display


419bff1a5586a017a5e680287b630e13


Machine Features


1.XYZAC five axis,A axis O to 90 degree automatic rotation,C axis O to 360 degree automatic rotation.

2.Vertical and horizontal cutting,multi-angle  diagonal  cutting.

3.Four sides miter(any angle between 0°-90°).

4.Cutting circle, Ellipse cutting, Sectorcutting,L-tops cutting, Sink cut-out, Arc cutting.

5.Cutter bits, Contouring, Suction moving.

6.Tabletilts 85 degree to load slabs easily.

7Intelligent control system.

8.With camera.

9Waterjet cutting.


Applicable Industries And Materials


Applicable  industry: sintered  stone  application  industry, fabricated  building  materials  industry,home decoration  materials  industry, CNC processing and production of basins, cabinet  countertops, and countertops for bathroom, bar and kitchen; washstands, marble walls, dining tables, coffee tables, window sills, door, etc.


Technical Parameters


Model

GQ-3220DSW

XYIZ Axis working size

3200*2000*500mm

Diameter of blade

350mm

Working table size

3200x2000mm

Blade Motor power

15KW

Total power

29KW

Rotation speed of blade

3000-6000rpm

A axis rotation angle

0°-90°

Caxis rotation angle

0°-360°

Table Tilting angle

85°

Control system

GANGER

Camera

YES

Waterjet cutting

YES

Gross weight

4500KGS

A axis rotation angleOptional
Grid foot grille Optional



FREE

Free process

analysis

365

One year free

warranty

24/7

24/7 online

service

Free software

training

lmmediate

installation guide

Free online troubleshooting

Professional

workshop planning

One year free

warranty

Future equipment

upgrades

1.QUALITY CONTROL

  • Professional technical engineers inspect the processing to ensure the quality of products
  • Each machine will run around 24 hours and tested 8 hours before delivery to ensure accurately in your workshop



2.GUARANTEE & AFTER SALE SERVICES

  • Free training available here China or online teaching video
  • 12 months guarantee under correct use and life time free consultation
  • Spare parts shall be free of charge if any problem during the warranty period
  • Consumable parts will be offered at agency price when replacement needed



3.OEM SERVICE AVAILABLE

  • XYZ working size customized according to your requirement
  • Main spare parts: motor.system,inverter choose as your choice
  • Machine brand and painting customized (agent available or MOQ 10 sets)



4.DELIVERY

  • Standard model: 10-20 working days
  • Customized Models: A reasonable delivery schedule will be offered after comprehensively evaluating all factors.



5.PAYMENT TERMS

  • T/T in advance
  • West union: Available when amount less than 1000$, banking charges paid by buyer
  • LC draft should be sent to confirm before Original LC made.
