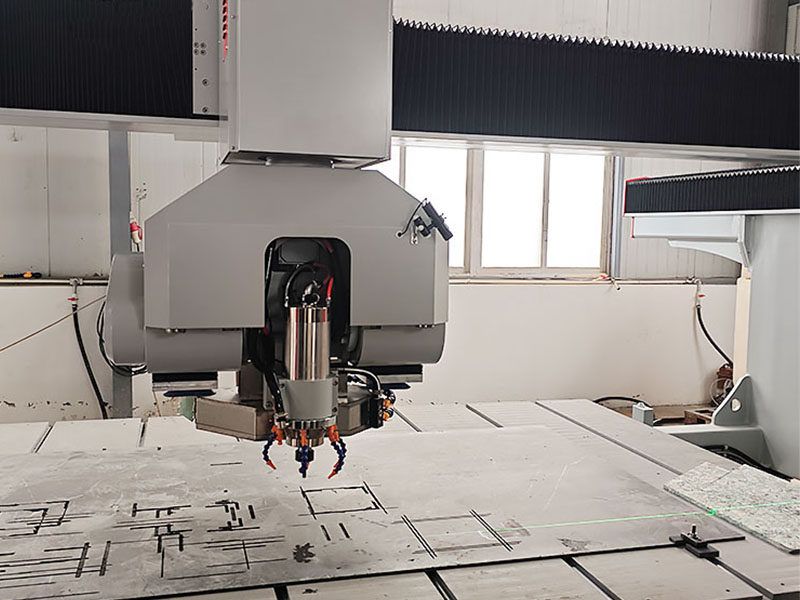

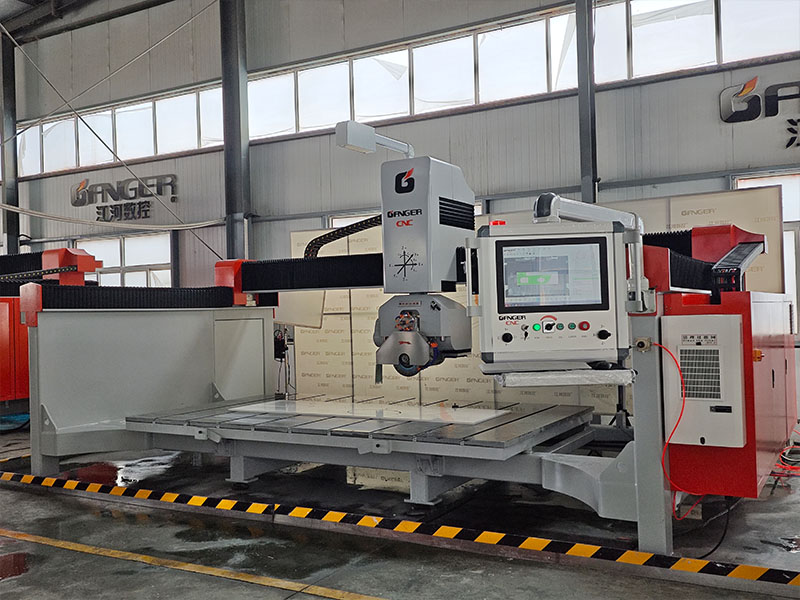

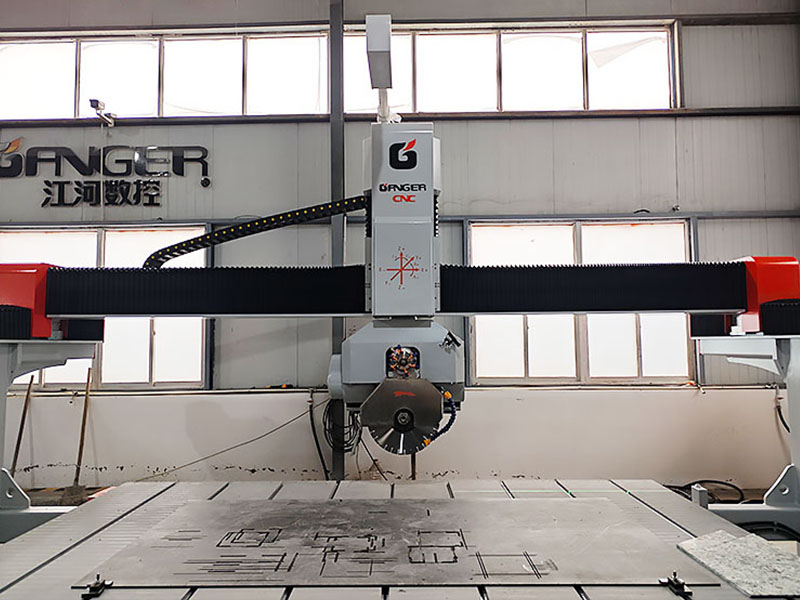

5 Axis Bridge Cutting (5+1) GQ-3220DSM
WhatsApp: +86 18865917946
Phone: +86 18865917946
Email: sh@gangercnc.com
Send Inquiry

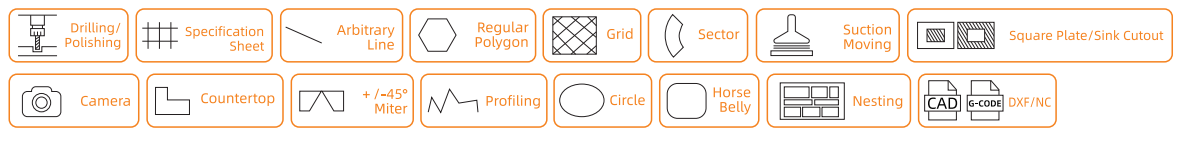

Function Display


ada7ba12683e11801f10a8d4832e9ea0


Machine Features


1.XYZAC  five  axis,A  axis  0-90  degree, C  axis  0-360  degree.

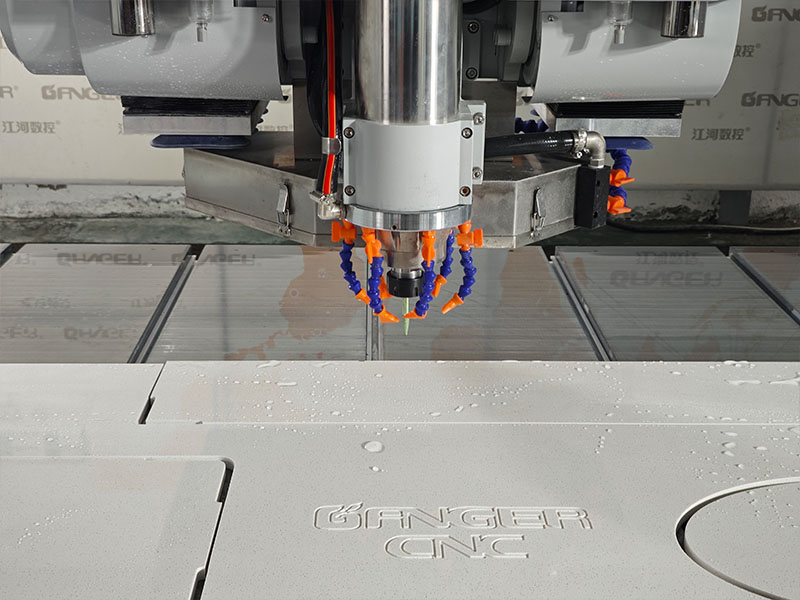

2.With  a  separate  spindle  5.5KW,18000rpm

3.Cutter bits,Contouring,Vacuum     moving.

4.Cutting circle,Ellipse,Sector,L-tops,Sink cut-out,Arc,etc.

5.Vertical  and   horizontal   cutting,multi-angle   diagonal   cutting.

6.Table tilts  85  degree to  load  slabs  easily.

7.Intelligent   control system.

8.With camera.


Applicable Industries And Materials


Applicable   industry:sintered   stone   application   industry,fabricated   building materials industry, home  decoration   materials   industry,cutting   marble,artificial   stone,quartz   stone  and  other materials.

Applicable material:sintered stone,ceramic plate,quartz stone,marble,etc.


Technical Parameters


Model

GQ-3220DSM

XY/Z Axis working size

3200*2000*500mm

Diameter of blade

400-500mm

Working table size

3200x2000mm

Blade motor power

15KW

Rotation speed of blade

3000-6000rpm

Spindle power

5.5KW

Max spindle speed

18000r/min

Total power

29KW

A axis rotation angle

0°-90°

C axis rotation angle

0°-360°

TableTiling angle

85°

Control system

GANGER

Camera

YES

Gross weight

4500KGS

Air conditionerOptional
Grid foot grilleOptional


FREE

Free process

analysis

365

One year free

warranty

24/7

24/7 online

service

Free software

training

lmmediate

installation guide

Free online troubleshooting

Professional

workshop planning

One year free

warranty

Future equipment

upgrades

1.QUALITY CONTROL

  • Professional technical engineers inspect the processing to ensure the quality of products
  • Each machine will run around 24 hours and tested 8 hours before delivery to ensure accurately in your workshop



2.GUARANTEE & AFTER SALE SERVICES

  • Free training available here China or online teaching video
  • 12 months guarantee under correct use and life time free consultation
  • Spare parts shall be free of charge if any problem during the warranty period
  • Consumable parts will be offered at agency price when replacement needed



3.OEM SERVICE AVAILABLE

  • XYZ working size customized according to your requirement
  • Main spare parts: motor.system,inverter choose as your choice
  • Machine brand and painting customized (agent available or MOQ 10 sets)



4.DELIVERY

  • Standard model: 10-20 working days
  • Customized Models: A reasonable delivery schedule will be offered after comprehensively evaluating all factors.



5.PAYMENT TERMS

  • T/T in advance
  • West union: Available when amount less than 1000$, banking charges paid by buyer
  • LC draft should be sent to confirm before Original LC made.
