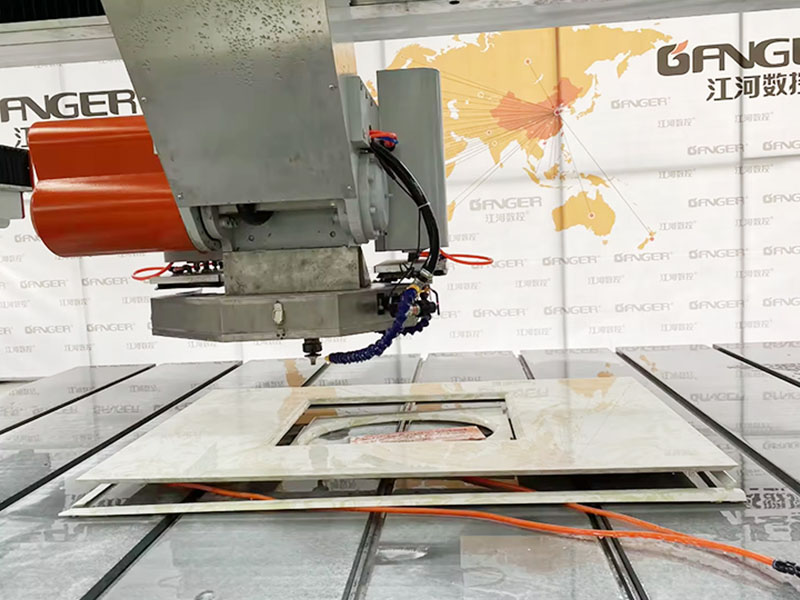

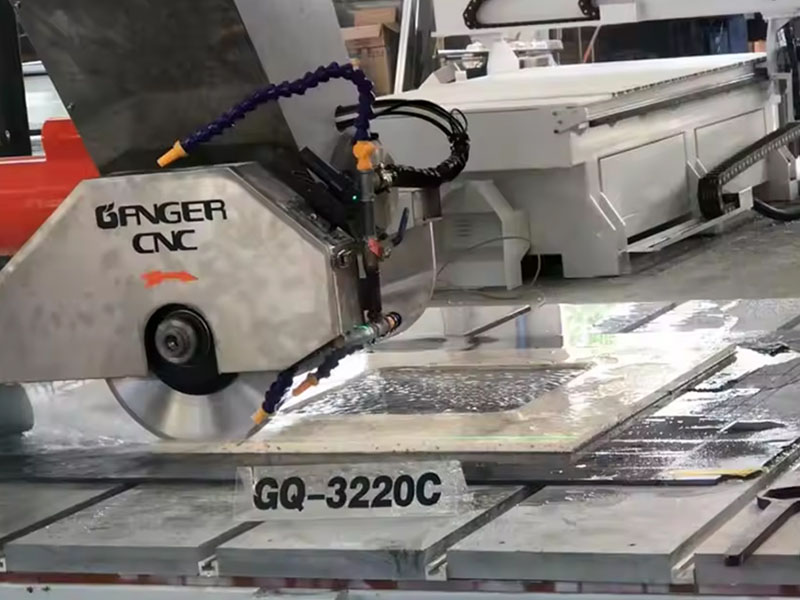

5 Axis Bridge Cutting Machine GQ-3220C
WhatsApp: +86 18865917946
Phone: +86 18865917946
Email: sh@gangercnc.com
Send Inquiry

Function Display


d608ecd671341da53ee3d192650a1b40


Machine Features


1. XYZAC five axis, A axis 0 to 90 degrees automatic rotation, C axis 0 to 360 degrees automatic rotation.

2. Vertical and horizontal cutting, multi-angle diagonal cutting.

3. Cutting straight line, curve lines, circle, oval, arc, grid point.

4. Slotting, edging, beveling, chamfering and cutting.

5. Cut sink holes, drill faucet holes.

6. Control system can read NC code and CAD program.

7. Table tilts 85 degree to load slabs easily.


Applicable Industries And Materials


Applicable industry: sintered stone application industry, fabricated building materials industry, home decoration materials industry, cutting marble, artificial stone, quartz stone and other materials.

Applicable material: sintered stone, ceramic plate, quartz stone, marble, etc.


Technical Parameters


ModelGQ-3220C
X/Y/Z Axis working size3200*2000*500mm
Diameter of blade350mm
Working table size3200x2000mm
Blade Motor power15KW
Total power29KW
Rotation speed of blade3000~6000rpm
A axis rotation angle0°-90°
C axis rotation angle0°-360°
Table Tilting angle85°
Control systemGANGER
Gross weight4500KGS
Air conditionerOptional
Grid foot grilleOptional


FREE

Free process

analysis

365

One year free

warranty

24/7

24/7 online

service

Free software

training

lmmediate

installation guide

Free online troubleshooting

Professional

workshop planning

One year free

warranty

Future equipment

upgrades

1.QUALITY CONTROL

  • Professional technical engineers inspect the processing to ensure the quality of products
  • Each machine will run around 24 hours and tested 8 hours before delivery to ensure accurately in your workshop



2.GUARANTEE & AFTER SALE SERVICES

  • Free training available here China or online teaching video
  • 12 months guarantee under correct use and life time free consultation
  • Spare parts shall be free of charge if any problem during the warranty period
  • Consumable parts will be offered at agency price when replacement needed



3.OEM SERVICE AVAILABLE

  • XYZ working size customized according to your requirement
  • Main spare parts: motor.system,inverter choose as your choice
  • Machine brand and painting customized (agent available or MOQ 10 sets)



4.DELIVERY

  • Standard model: 10-20 working days
  • Customized Models: A reasonable delivery schedule will be offered after comprehensively evaluating all factors.



5.PAYMENT TERMS

  • T/T in advance
  • West union: Available when amount less than 1000$, banking charges paid by buyer
  • LC draft should be sent to confirm before Original LC made.
