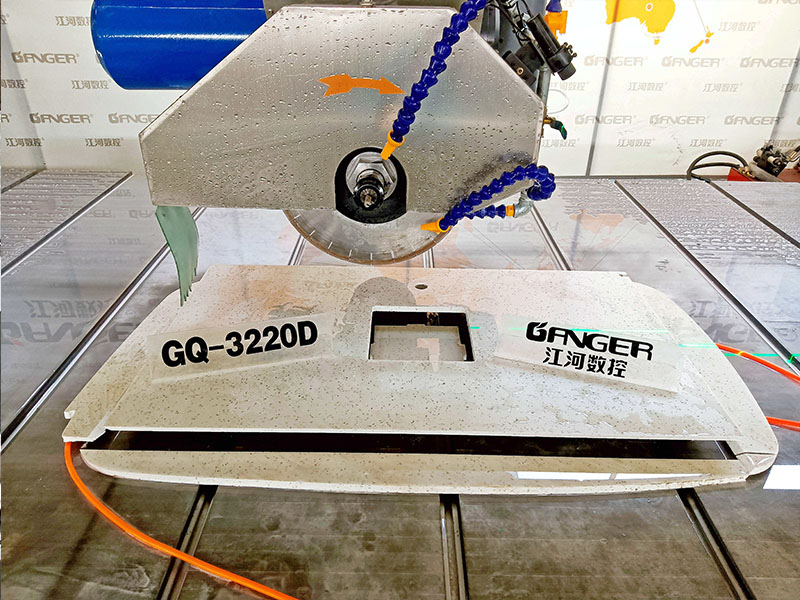

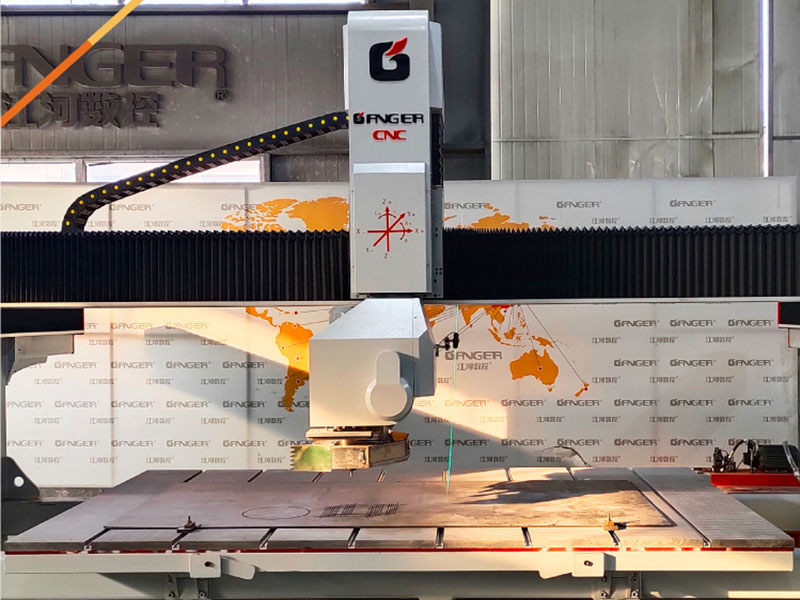

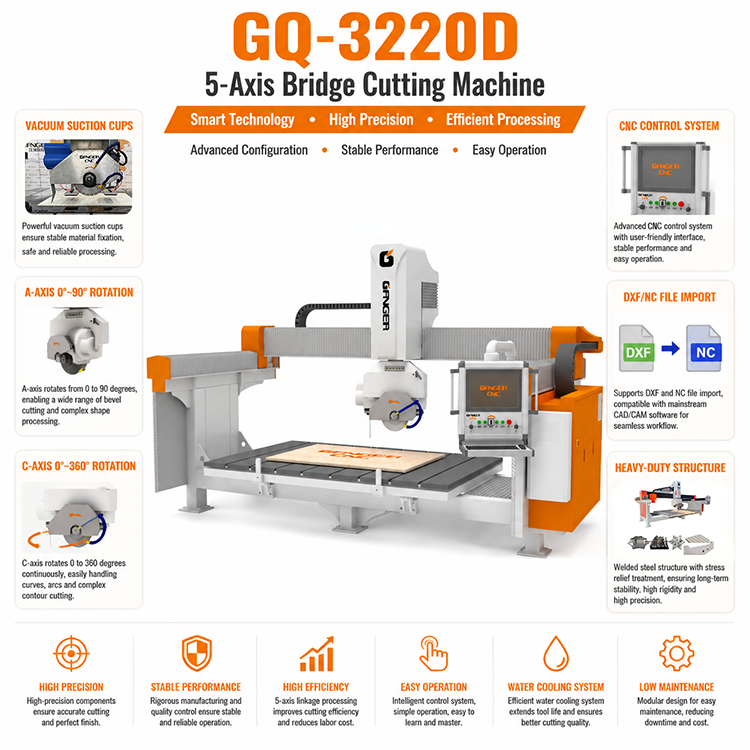

5 Axis Bridge Cutting Machine GQ-3220D
WhatsApp: +86 18865917946
Phone: +86 18865917946
Email: sh@gangercnc.com
Send Inquiry

Function Display

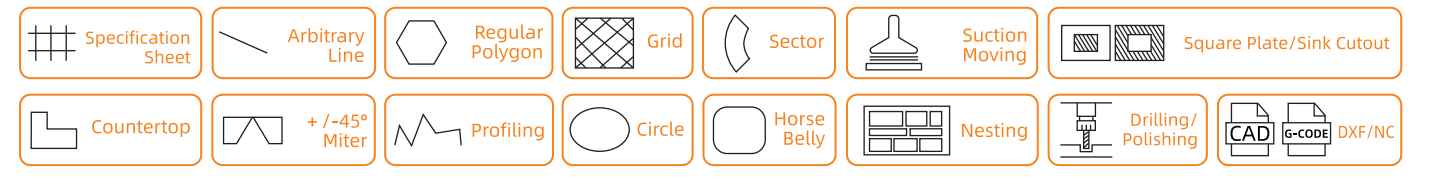

11d96afb5b7c1055c29a266043f80ed4


Machine Features


1. XYZAC five axis, A axis 0 to 90 degree automatic rotation, C axis 0 to 360 degree automatic rotation.

2. Vertical and horizontal cutting, multi-angle diagonal cutting.

3. Four sides miter (any angle between 0°-90°).

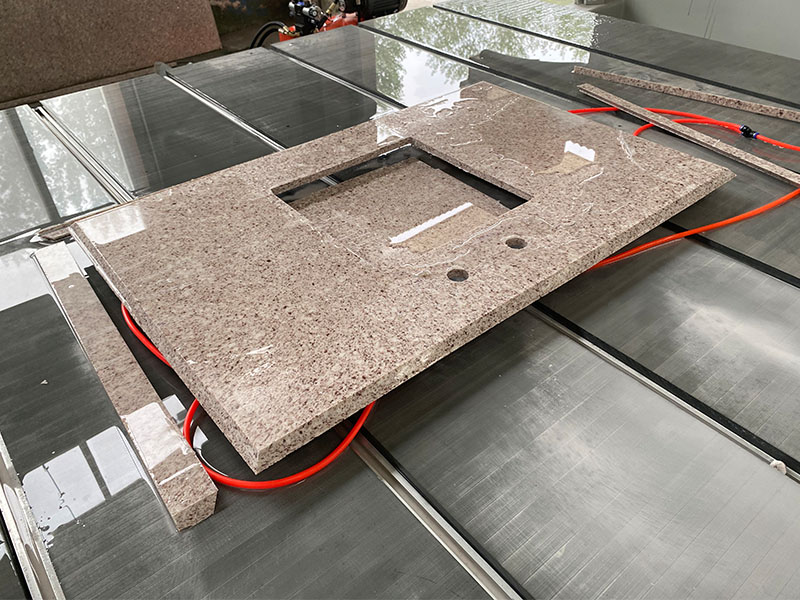

4. Cutting circle, Ellipse cutting, Sector cutting, L-tops cutting, Sink cut-out, Arc cutting.

5. Cutter bits, Contouring, Suction moving.

6. Intelligent control system.

7. Table tilts 85 degree to load slabs easily.


Applicable Industries And Materials


Applicable industry: sintered stone application industry, fabricated building materials industry, home decoration materials industry, cutting marble, artificial stone, quartz stone and other materials.

Applicable material: sintered stone, ceramic plate, quartz stone, marble, etc.


Technical Parameters


ModelGQ-3220D
X/Y/Z Axis working size3200*2000*500mm
Diameter of blade350mm
Working table size3200x2000mm
Blade Motor power15KW
Total power29KW
Rotation speed of blade3000~6000rpm
A axis rotation angle0°-90°
C axis rotation angle0°-360°
Table Tilting angle85°
Control systemGANGER
Gross weight4500KGS
Air conditionerOptional
Grid foot grilleOptional


FREE

Free process

analysis

365

One year free

warranty

24/7

24/7 online

service

Free software

training

lmmediate

installation guide

Free online troubleshooting

Professional

workshop planning

One year free

warranty

Future equipment

upgrades

1.QUALITY CONTROL

  • Professional technical engineers inspect the processing to ensure the quality of products
  • Each machine will run around 24 hours and tested 8 hours before delivery to ensure accurately in your workshop



2.GUARANTEE & AFTER SALE SERVICES

  • Free training available here China or online teaching video
  • 12 months guarantee under correct use and life time free consultation
  • Spare parts shall be free of charge if any problem during the warranty period
  • Consumable parts will be offered at agency price when replacement needed



3.OEM SERVICE AVAILABLE

  • XYZ working size customized according to your requirement
  • Main spare parts: motor.system,inverter choose as your choice
  • Machine brand and painting customized (agent available or MOQ 10 sets)



4.DELIVERY

  • Standard model: 10-20 working days
  • Customized Models: A reasonable delivery schedule will be offered after comprehensively evaluating all factors.



5.PAYMENT TERMS

  • T/T in advance
  • West union: Available when amount less than 1000$, banking charges paid by buyer
  • LC draft should be sent to confirm before Original LC made.
